產品型號名稱:Model 1040荷重元
OPTIONAL FEATURES：
●EEx is IIC T4 - hazardous area approval
●FM approval available
●IP67available
APPLICATIONS：
●Bench scales
●Counting scales
●Grocery scales
DECRIPTION：

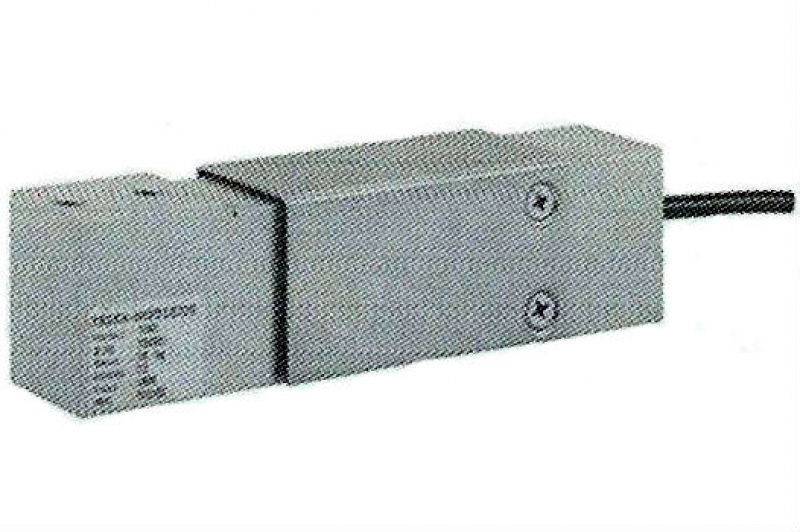

Models 1040 and 1041 are low profile single point load cells designed for direct mounting of low cost weighing platforms.
Their small physical size, combined with high accuracy and low cost, makes these load cells ideally suited for retail, bench and counting scales.
Available in anodized aluminum these high accuracy load cells are approved to NTEP and other stringent approval standards, including OIML R60. For hazardous environments this load cell has EEx ia IIC T4 level of approved option.An optional special humidity resistant protective coating assures long term stability over the entire compensated temperature range.

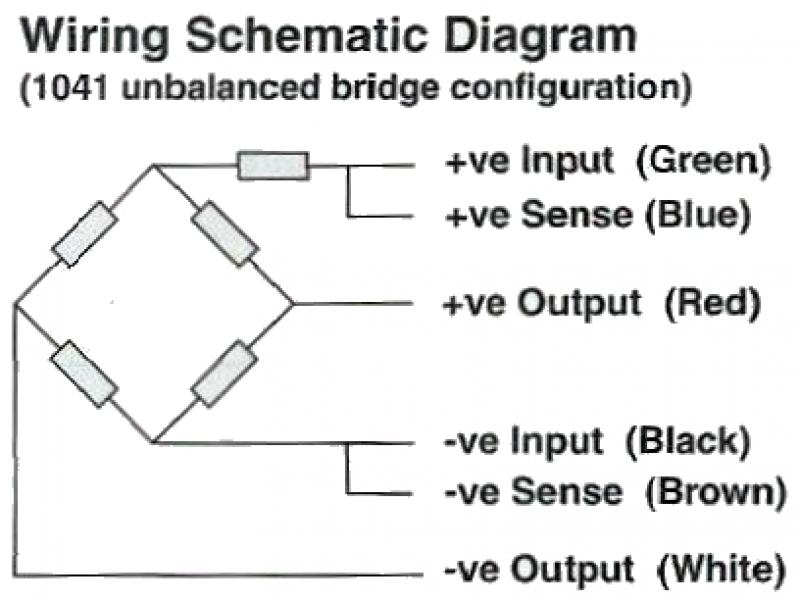

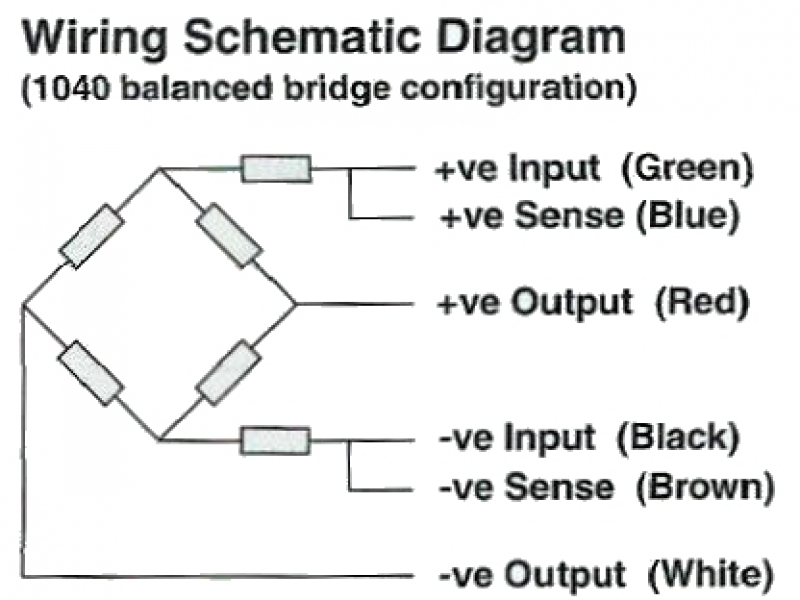

The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.
