產品型號名稱:Model LCD荷重元
OPTIONAL FEATURES：
●FM approval available
●LCD-TT/M/MH with different loading holes
APPLICATIONS：
●Truck/Rail scales
●Silo/Hopper/Tank weighing
●Universal Material Tester
●Tensile/Pulling Force Measurement
DECRIPTION：

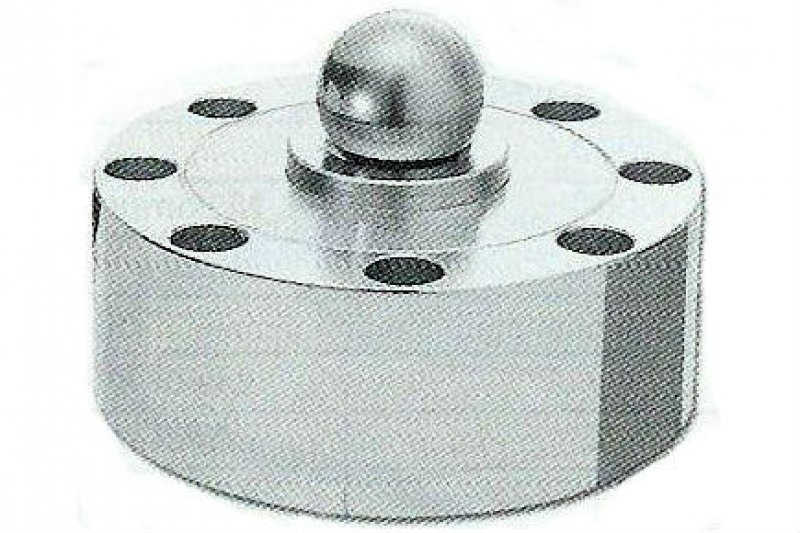

The low profile compression disk is designed as the ultimate solution for some difficult applications with critical height for safety reasons. The shear web design provides excellent performance even when the side force inevitably exists in normal operations. The typical example for side force resistance is the applications in motor truck scales.
LCD is constructed of alloy steel and fully potted with special chemical compounds to IP67 providing excellent protection against moisture and humidity.
